| Camera |
| Image Sensor |
1/2.5" Progressive Scan CMOS |
| Max. Resolution |
5200 × 2320 |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time |
1 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 mm |
| Focal Length & FOV |
2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm: 1.6 m to ∞ |
| DORI |
| DORI |
2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m |
| Illuminator |
| Supplement Light Type |
White Light, IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50Hz：
20fps(5200 × 2320, 4096 × 1856)
60Hz：
20fps(5200 × 2320, 4096 × 1856) |
| Sub-Stream |
50Hz：
20fps(1200 × 536, 960 × 432)
60Hz：
20fps(1200 × 536, 960 × 432) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 32 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed regions for each stream |
| Audio |
| Audio Type |
-U:Mono sound |
| Audio Compression |
-U:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
-U: Yes |
| Network |
| Protocols |
SNMP, SSL/TLS, IPv6, IGMP, DNS, SFTP, WebSockets, QoS, DDNS, SMTP, PPPoE, DHCP, WebSocket, FTP, NTP, HTTP, RTSP, IPv4, HTTPS, UPnP, RTP, TCP/IP, ICMP,802.1X, RTCP, UDP |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.3, host authentication (MAC address), watermark, RTP/RTSP over HTTPS, complicated password, AES128/256, Password protection, WSSE and digest authentication for Open Network Video Interface, TLS 1.2, 802.1X authentication(EAP-LEAP, EAP-TLS, EAP-MD5, EAP-PEAP), control timeout settings, HTTPS encryption, security audit log |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser |
Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+
Local service: Chrome 91+, Firefox 88+, Edge 91+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC,3D DNR, Distortion Correction, Defog |
| SNR |
≥ 52 dB |
| Wide Dynamic Range (WDR) |
130 dB |
| Image Stabilization |
No |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker |
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Audio |
Built-in Microphone: -2U: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output |
| Smart Event |
Scene change detection |
| Linkage |
notify surveillance center, trigger alarm output, trigger recording, trigger capture, audible warning, send email |
| Deep Learning Function |
| Face Capture |
No |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
| Power |
12 VDC ± 25%, 1.67 A, max. 20 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 24 W |
| Material |
Cover: metal, main body: metal |
| Dimension |
Ø138.6 mm × 125 mm (Ø5.46" × 4.92") |
| Package Dimension |
170 mm × 170 mm × 160 mm (6.69" × 6.69" × 6.30") |
| Weight |
Approx. 840 g (1.85 lb. ) |
| With Package Weight |
Approx. 1070 g (2.35 lb. ) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Heartbeat, flash log, password reset via email, pixel counter, anti-banding |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Flashing Light |
/SRB model: Red and Blue Light
/SL model: White Light |
| Approval |
| EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety |
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP67: IEC 60529-2013 |
| Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
Français
Deutsch

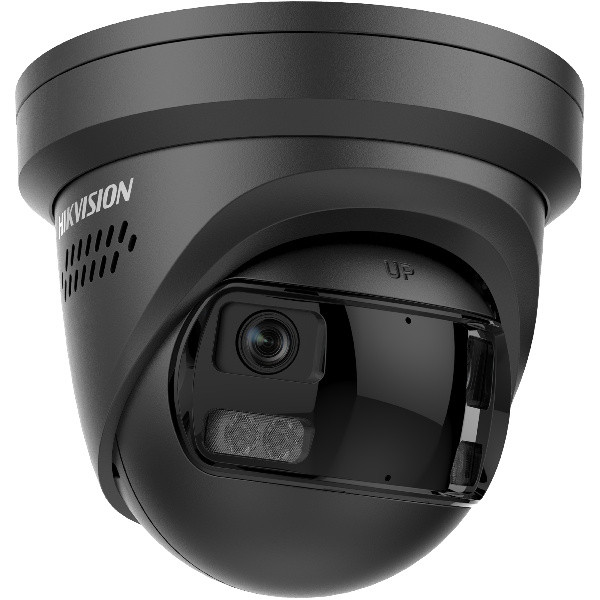

_B.jpeg "DS-2CD23127G3P-LIS2UY/SL(180°)/BLACK - Caméra IP Panoramic 12MP Fixe Turret ColorVu")
